What is Y filter valve?
A filter valve is a crucial device utilized for fluid flow control, primarily designed to eliminate impurities and particles from the fluid to safeguard downstream equipment and systems against contamination and damage.
What is its scope of application?
Filter valves are extensively employed in various industrial, commercial, and residential water systems to ensure optimal fluid purity and quality.
Product Feature
- Low fluid resistance: The internal channels of the valve body are straight, resulting in minimal resistance to fluid flow, which helps reduce the cost of fluid transportation.
- Rapid and convenient opening and closing: The valve can be fully opened or closed by rotating it only 90°, making it easy to operate and suitable for remote control.
- Excellent sealing performance: The sealing surfaces of valves are typically made of various plastics, providing tight sealing and making them suitable for vacuum systems.
- Simple structure, small size, and lightweight: The straightforward design ofvalves, along with their compact size and lightweight, facilitates easy maintenance and installation.
- Long service life: The seat seals of valves are often made of resilient materials like Teflon, ensuring good sealing performance and durability, resulting in a longer service life.
- Convenient maintenance: The simple structure ofvalves, with the sealing surfaces often closed, makes them resistant to erosion by the medium and easy to maintain and repair.
Product details
Application | General |
Place of Origin | Hebei, China |
Power | Manual |
Structure | ball |
Customized support | OEM, ODM |
Warranty | 3 years |
Temperature of Media | Medium Temperature, Normal Temperature |
Brand Name | LanHui |
Media | Water |
Product name | Soft seal gate valve |
Color | Customized Color |
Packing | Wooden Case |
Applicable fields | Tap Water |
Material | Ductile Iron |
Customized support | OEM |
Size | Custom Size |
Standard or Nonstandard | Standard |
Production Process
Clamping valve
What is the clamping valve?
The clamp is a specialized device designed for the efficient repair of pipeline leaks. Comprising two bodies and rubber pads, it effectively addresses water leakage incidents caused by pipeline sand hole, porosity, and breakage in various liquid and gas pipelines.

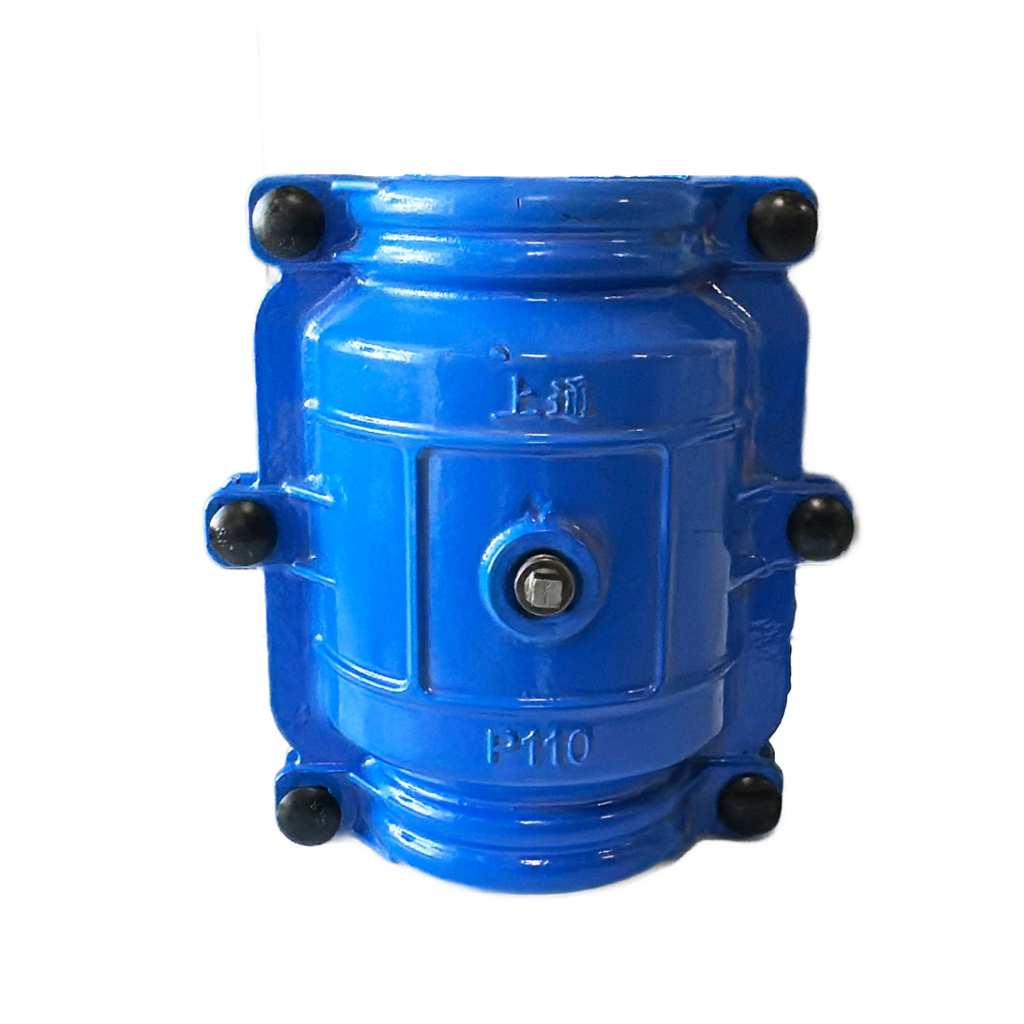

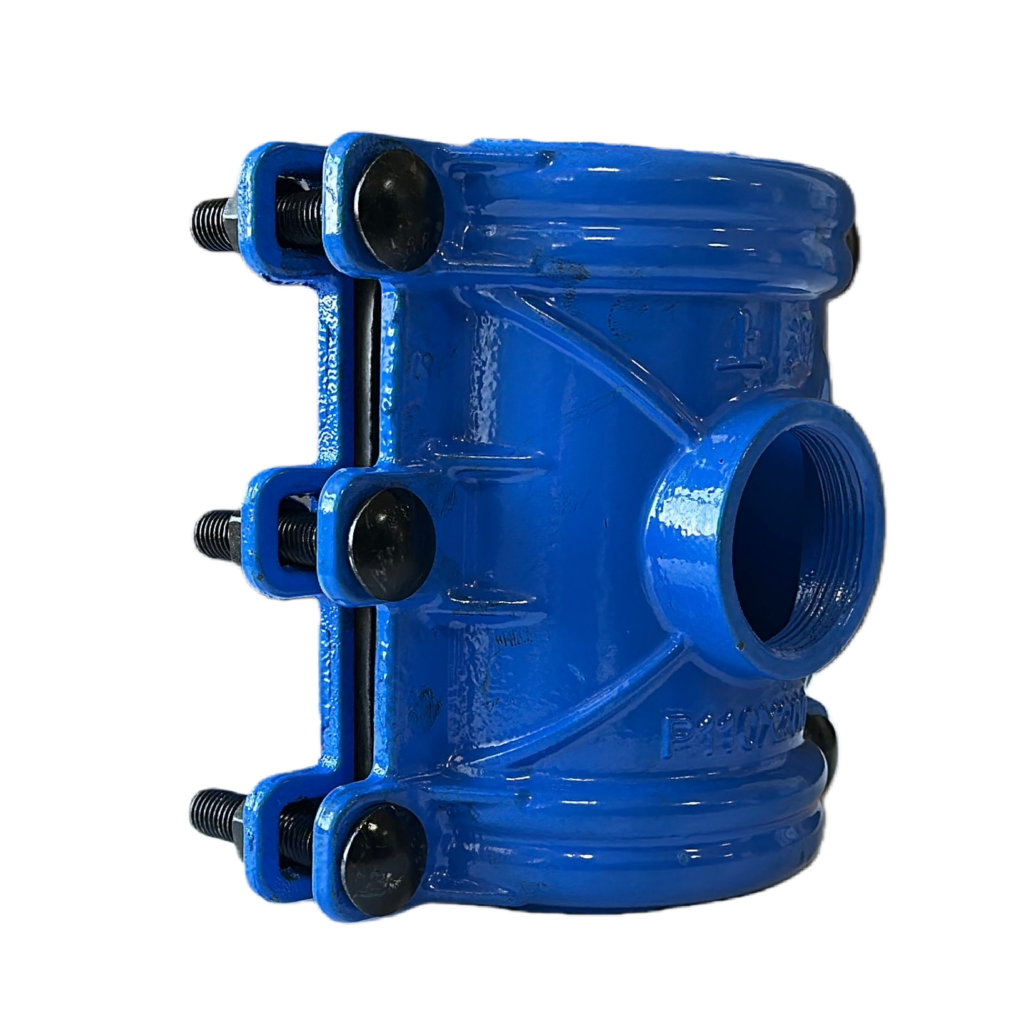

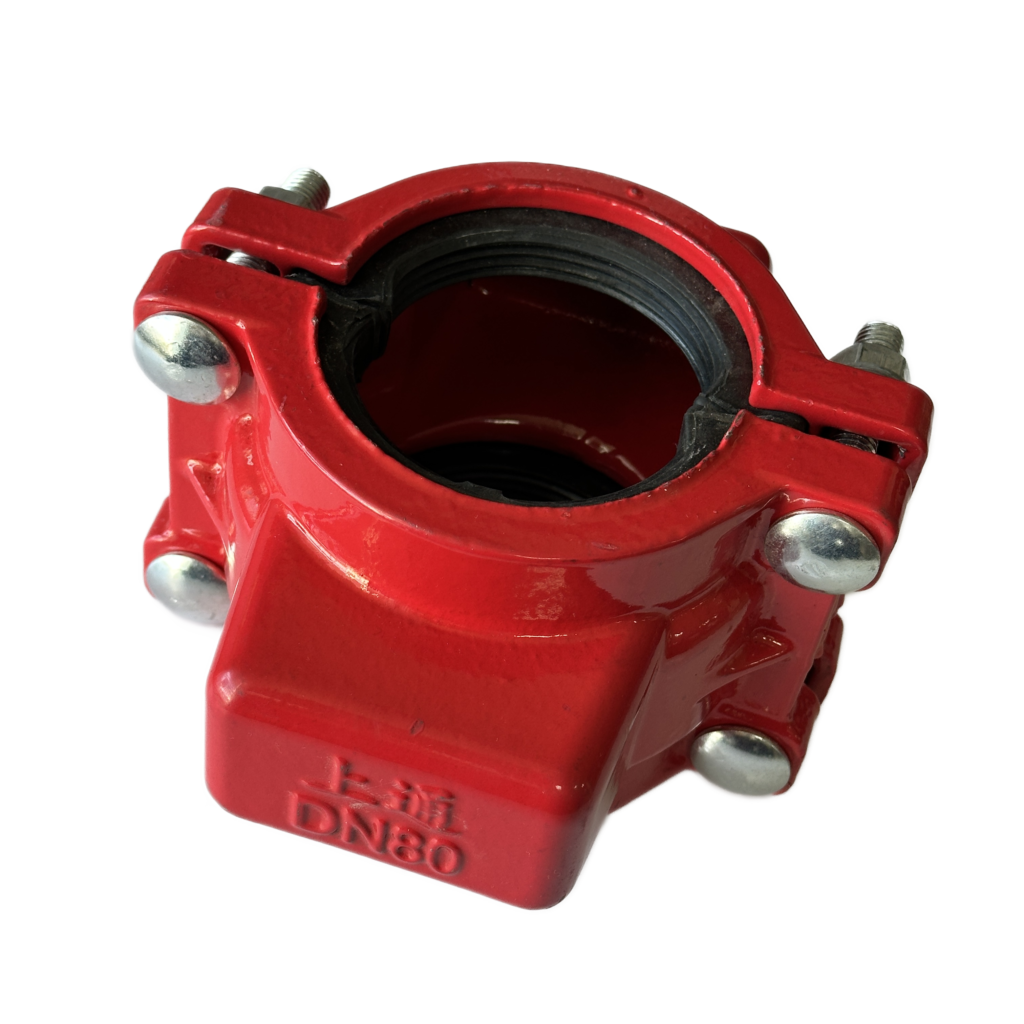

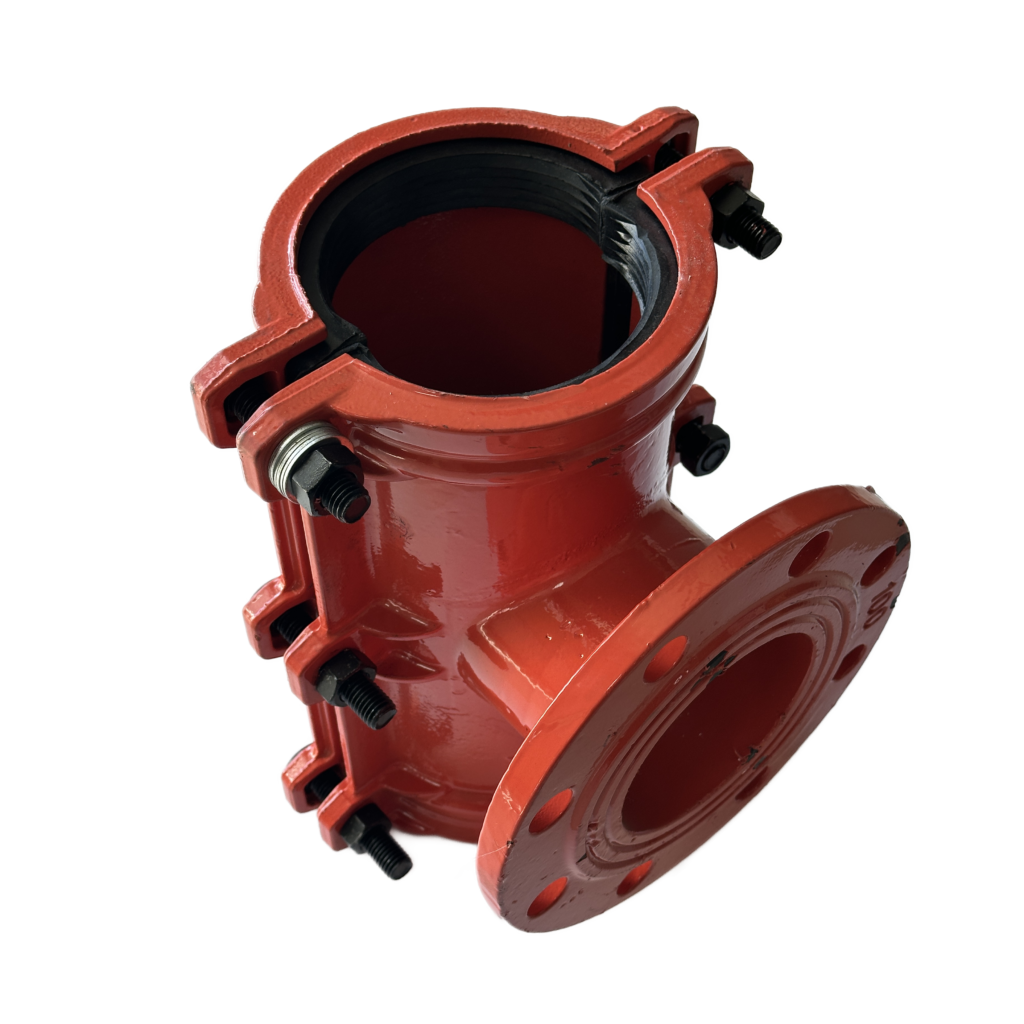

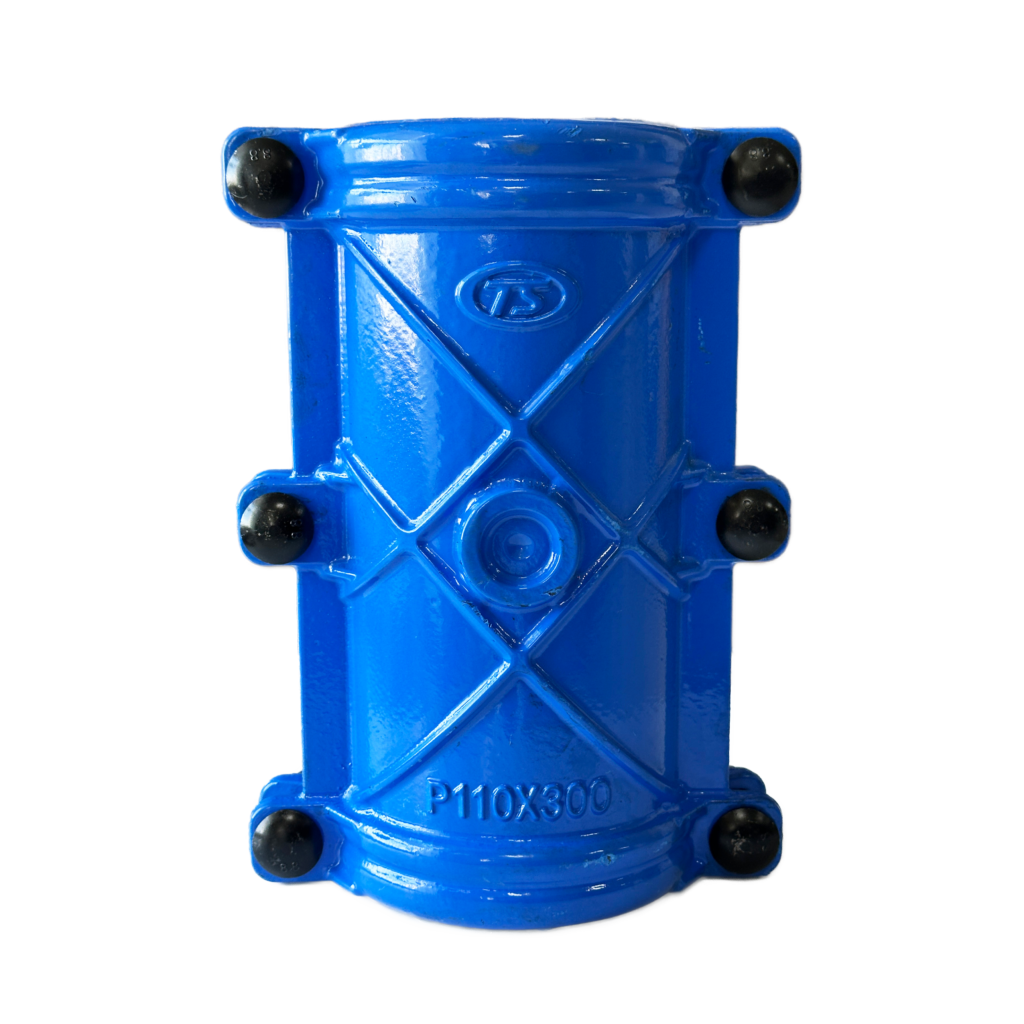

Nodular cast iron clamping valve

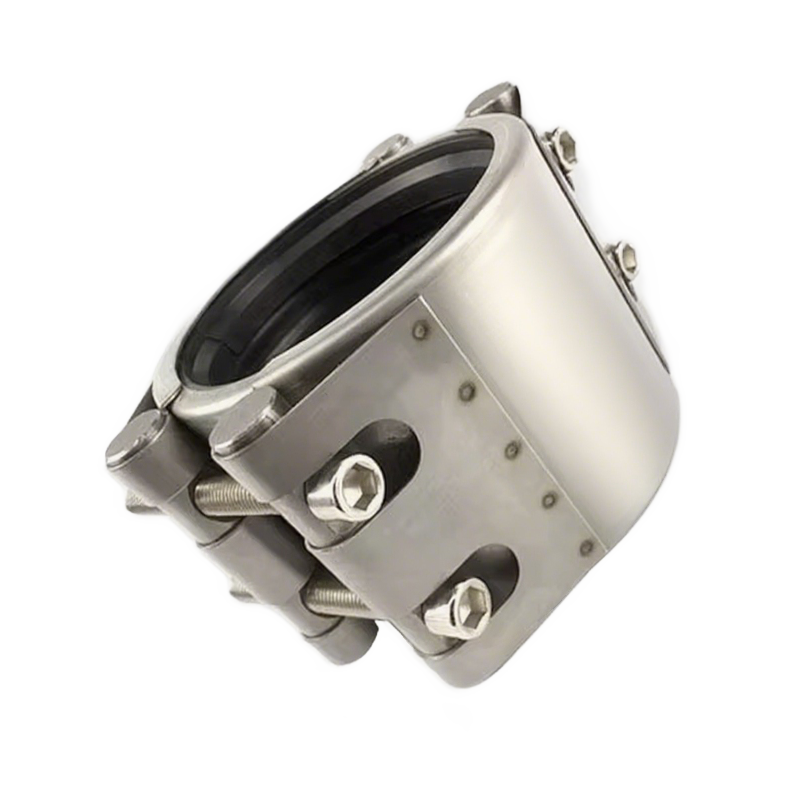

Stainless steel clamping valve
Drawing of Stainless Steel Clamping Valve
Working Principle
Axial locking (using ring teeth)
The tensile pipe connector is suitable for all metal pipes with wall thickness, and the advanced tooth ring (clamp) design provides the axial tensile force of the pipe. It can replace the traditional pipe connection types such as flange, welding, wire connection, socket connection and groove joint.
- When the screw is tightened to the specified torque value, the teeth on the tooth ring will firmly bite the outer wall of the pipe, thus completing the axial binding connection.
- When the pressure in the tube continues to increase or is affected by external high-frequency vibration, the clamp will bite the tube wall more tightly.
- Tooth ring can not only connect a variety of metal pipes, but also can be used for rubber plastic and other soft surface pipes.
- The ring can be processed with different hardness, so that it can be flexibly applied to the connection of various materials.
Axial compensation
Compensation type pipe connector, pipe repair device is suitable for all pipe materials, with a unique sealing ring design, can compensate the pipe axial, radial displacement, angular dislocation
Material of parts
Parts/Material | M1 | M2 | M3 | M4 |
Outer shell | 304 Stainless steel | 316 Stainless steel | 316 Stainless steel | 201 Stainless steel |
Lining plate | 304 Stainless steel | 316 Stainless steel | 316 Stainless steel | 201 Stainless steel |
Pin | 304 Stainless steel | 316 Stainless steel | 316 Stainless steel | 201 Stainless steel |
Bolt | 304 Stainless steel | 316 Stainless steel | 316 Stainless steel | 201 Stainless steel |
Tooth ring | 304 Stainless steel | 316 Stainless steel | 316 Stainless steel | 201 Stainless steel |
Sealing Gasket | Applicable temperature and medium |
EPDM | Temperature: -30 to +130 |
Medium : water | |
NBR | Temperature: -20 to +110 |
Medium : water | |
MVQ | Temperature: -75 to +200 |
Medium : water | |
VITON | Temperature: -95 to +300 |
Medium : water |
Temperature and Medium
Product Installation
Frequently asked Questions and Answers
Leakage may be due to poor seat seal, ball valve body and pipe connection is not tight, poor spool seal and other reasons. In addition, the long-term use of ball valves may lead to wear between the spool and the sealing surface, and factors such as excessive medium flow rate, particulate matter suspended in the medium, and poor lubrication may also lead to leakage.
The stem is stuck, rusted or damaged, you can lubricate or replace the stem to remove the foreign matter inside the valve.
